Dual Axis Inner Loop High-Speed Electric Turntable DET-400

No.DET-400

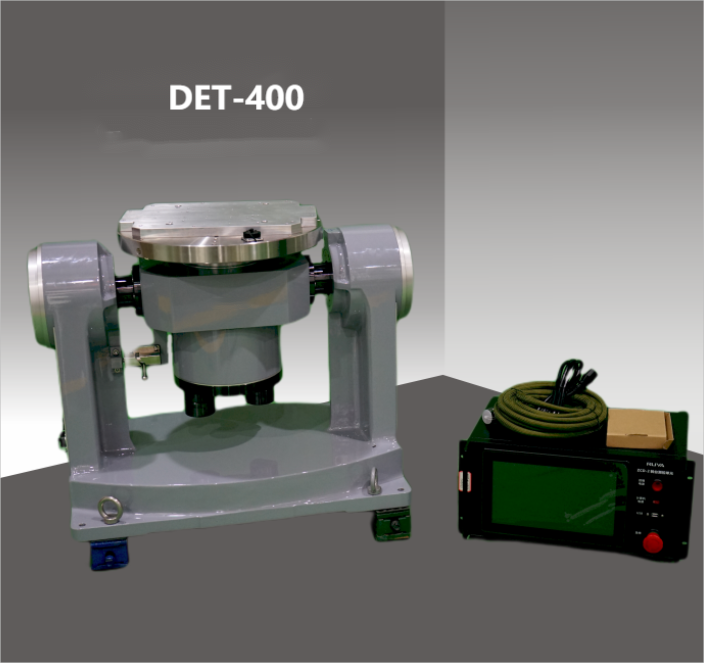

          DET-400 dual-axis inner-ring high-speed motorized rotary table has two degrees of freedom of motion in the azimuth axis (X) and the pitch axis (Y), and is a table-type two-dimensional precision test equipment. It is mainly used for the position, rate, swing and other functions of precision components and assemblies.

  • Dual Axis Inner Loop High-Speed Electric Turntable DET-400
  • Description

  • Contact Us

  • Download

Technical specification

  1. Rated load: 15Kg
  2. Table size: Ф400mm
  3. Table flatness: 0.02mm;
  1. Table surface runout: 0.02mm;
  2. Dual-axis rotary accuracy: ±5”;
  3. Dual-axis positional accuracy: outer frame: ±3″, inner frame: ±2″
  4. Rate accuracy and smoothness
ω≤1°/s , 2×10-3 (1° averaging)
1°/s ≤ω<10°/s , 2×10-4 (10° averaging)
ω ≥10°/s , 2×10-5 (360° averaging).
  1. Rate range
Inner frame: ±0.001°/s ~ ±3600°/s;
Outer frame: ±0.001°/s~±400°/s.
9. Acceleration
Outer frame: greater than 100°/s²;
Inner frame: more than 200°/s².
1.T0able weight: ≤200Kg
