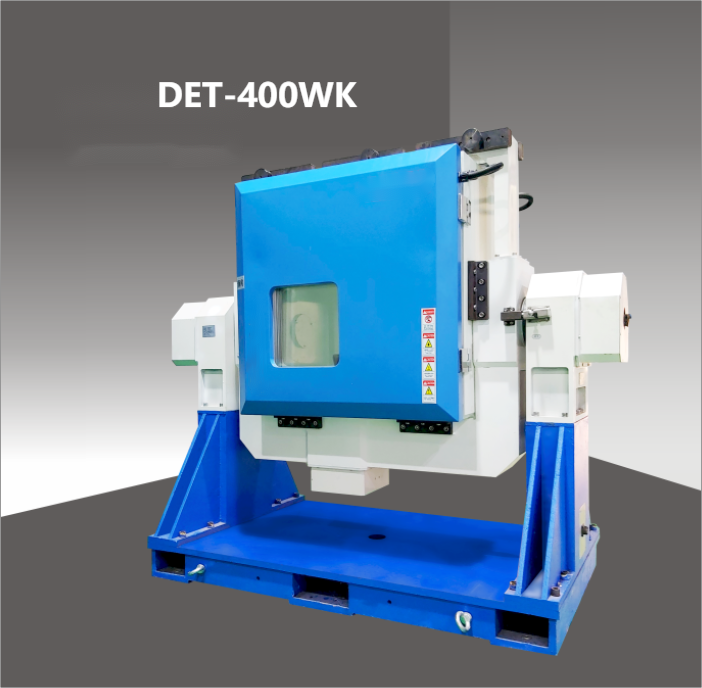

Dual Axis Temperature-controlled Turntable DET-400WK

No.DET-400WK

         Dual-axis temperature-controlled rotary table is for fiber optic gyro and IMU research and testing, production debugging and maintenance of calibration and the development of special precision equipment, mainly for the rate and position function test, with stable performance, reliable operation, simple operation, low acquisition cost and so on. The equipment can also be used for the test of other inertial components and devices. The rotary table consists of mechanical table body, temperature control box and measurement and control system.

  • Dual Axis Temperature-controlled Turntable DET-400WK
  • Description

  • Contact Us

  • Download

Technical indicators

  1. Rated load: 30K
  2. Table size: Ф400m
  3. Table flatness: 0.02mm
  4. Table surface jump: 0.02mm
  5. Dual-axis rotary accuracy: ± 3″
  6. Dual-axis positional accuracy: outer frame: ±3″, inner frame: ±2″
  7. Rate accuracy and smoothness
ω≤1°/s , 2×10-3 (1° averaging)
1°/s ≤ω<10°/s , 2×10-4 (10° averaging)
ω ≥10°/s , 2×10-5 (360° averaging)
  1. Rate Range:
Inner frame: ±0.001°/s~±800°/s
Outer frame: ±0.001°/s~±200°/s
  1. Acceleration
Outer frame: greater than 50°/s²
Inner frame: greater than 400°/s².
  10.Temperature control box parameter
Temperature Range: -55°C/+100°C
Internal volume:  91L
Effective internal dimensions: mm  600 x 600x450 (W x D x H)
Outer dimensions of the box: mm  900x 700x 900 (W x D x H)
Dimensions of the unit (including control cabinet): mm  1800mm x 1100mm x 1900 (W x D x H)
