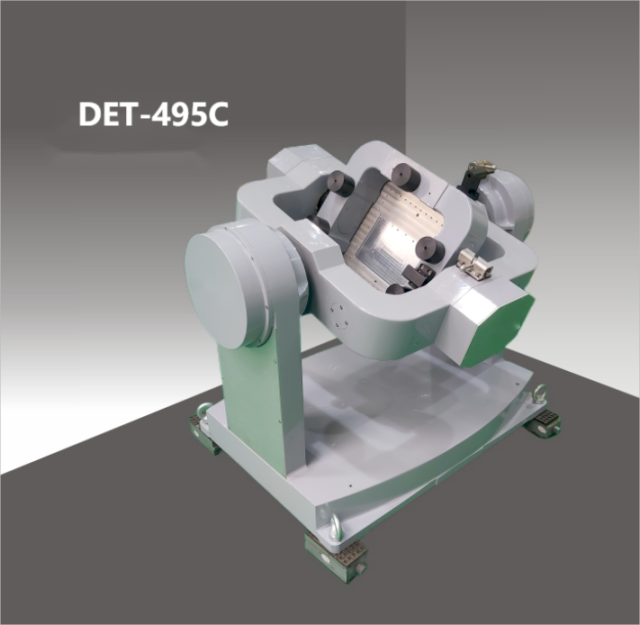

Dual-Axis Turntable DET-495C

Name: Dual-Axis Turntable DET-495C
Brand: OELABS
SKU: DET-495C
Availability: InStock
Rating: 5 (1 reviews)

No.DET-495C

DET-495C dual-axis rotating platform is a dual-axis automatic frame multifunctional simulation test equipment with position, rate and other test functions, which can meet the inertial system and inertial components of the functional test and experiment, with high-precision positioning ability, smooth rate, waveform distortion, such as a small degree of good dynamic characteristics.

GET A QUOTE Download

Description
Contact Us
Download

Technical specification

Rated load: 20Kg
Maximum size of test piece: 220×220×280
Angle range: two-axis continuous infinite
Inclination slewing accuracy: inner frame: ±5″; outer frame: ±5″.
Average axis perpendicularity: inner-outer frame axis: ±10″.
Dual-axis angular position measurement accuracy: outer frame: ±5″ inner frame: ±5″.
Repeatability of dual-axis angular position measurement: ±2″.
Dual-axis angular position control accuracy: ±5″.
Rate accuracy and smoothness

ω≤1°/s , 2×10^-3(1° averaging)

1°/s ≤ω<10°/s , 2×10^-4 (10° averaging)

ω ≥10°/s , 2×10^-5(360° averaging).

Rate range:

Inner ring: ±0.001°/s～±200°/s

Outer ring: ±0.001°/s～±200°/s

11.Acceleration:

Outer frame: greater than 50°/s²;

Inner frame: greater than 100°/s²
