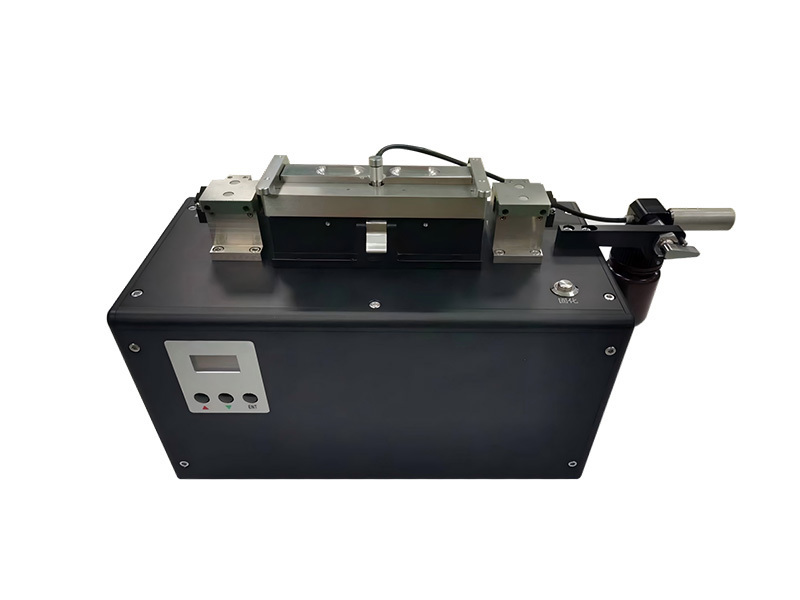

FTROE-100M+ Optical Fiber Recoater

Model name

FTROE-100M+

Applicable optical fiber material

Quartz optical fiber

Re-coating diameter

280μm/430μm/600μm/680μm(Customize for special diameters).

Re-coating length

4-100mm

Curing light source

UVLED wavelength 365nm±15nm

Curing material

Optical curing acrylate

Curing time

10-30seconds

Mold material

Quartz

Injecting glue method

Manual

Precision of mold arc groove

±5 micron

Dimensions

336mm(L)*147mm(W)*184mm(H)

Weight

4kg(With battery)

Power supply

External power supply:ACinput:100 to 240V (50 to 60Hz) DCoutput:13.5V/5A Internal lithium battery:10.8V 6500mAh

Operating condition

Temperature:0~+40℃,Humidity:<95%(non dew),Altitude:0~5000m

Storage condition

Temperature:-20~+60℃,Humidity:<95%(non dew)
