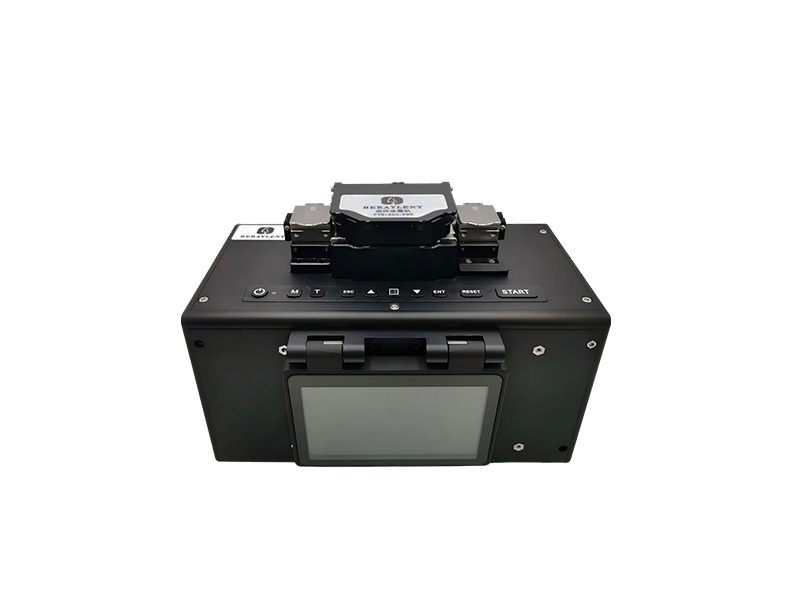

FTROE-50A-PRO Automatic Optical Fiber Recoater

Model name

FTROE-50A-PRO

Applicable optical fiber material

Quartz optical fiber

Re-coating diameter

280μm/430μm/600μm/680um (Customize for special diameters)

Re-coating length

4-50mm

Curing light source

UVLED wavelength 365nm±15nm

Curing material

Optical curing acrylate

Mold material

Quartz

Curing time

10-30seconds

Injecting glue method

Automatic

Precision of mold arc groove

±5 micron

Dimensions

248mm(L)*134mm(W)*186mm(H)

Weight

4.5kg(With battery)

Power supply

External power supply:ACinput:100 to 240 V (50 to 60Hz)DCoutput:13.5V/5A Internal lithium battery:10.8V 6500mAh

Operating condition

Temperature:0~+40°℃,Humidity:<95%(non dew),Altitude:0~5000m

Storage condition

Temperature:-20~60℃, Humidity:<95%(non dew)
