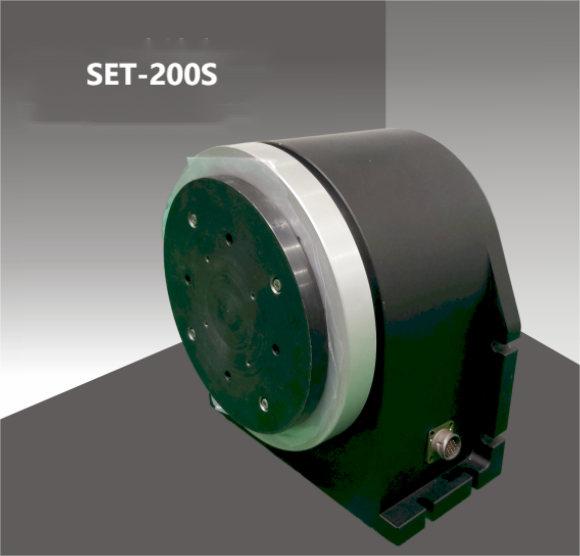

SET-200S high-precision single-axis test rotary table is mainly used to provide high-precision rotary reference when testing, with high precision, stable structure, adapt to different load test requirements, automatic centering and so on.
Technical specifications
(1) Structural form: table structure, vertical and horizontal dual-use
(2) Shaft system: precision mechanical shaft system
(3) Working angle: 360°continuous rotation
(4) Load weight: not more than 10Kg
(5) Table size: Ф240mm (stainless steel)
(6) Axis end face runout: ≤ 0.005μm (using standard glass ball center position detection)
(7) Axis radial runout: ≤ 0.005μm (using the standard glass ball center position detection)
(8) Adopting three-jaw chuck structure with automatic core setting for clamping
(9) Clamping diameter range:
(10) Electric control parameter
(11) Reliability means
