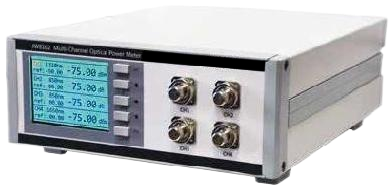

High speed optical power meter

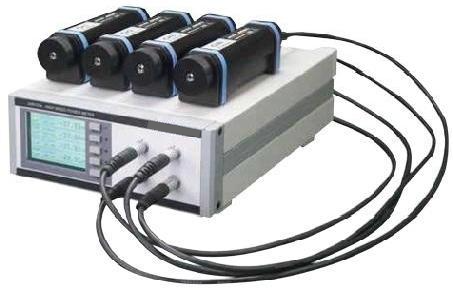

• Multi-purpose, flexible configuration (external probe alone / external probe connected to the meter to use / use the built-in detector)
• 1~4 channels can be selected (more channels can choose OPM8105 products)
• Large dynamic test range +10~-80dBm
• Sampling rate can be set, the highest 10Ksps
• With three trigger storage function, trigger edge can be set
• Large-capacity storage, each channel can be stored points for 65536
• With analog voltage output function
• Support RJ45&RS232 communication at the same time
• Support PDL measurement
• Display wavelength can be set up by yourself, support up to 32 wavelengths
• A variety of interface forms (including bare fiber adapter, 1.25/2.5 universal connector, FC/LC/SC interface)
• Internal thermostat control circuit, to ensure that the detector works at a constant temperature, to improve the testing accuracy.

Application

          OPM8103 Bentch top Dual-channel High Speed Power Meter is according to the newest optical power test requirements ,combined with the technology characteristics of the power meter in domestic and overseas; the dual channel high speed power meter with very fast sampling rate(can achieve 51200 sampling point per second) and fast stable time, greatly improve the test efficiency；provide large InGaAs detector and adaptors，make it suitable for bare fiber environment and dynamic range test；provide more comprehensive menu settings function，for many test situations to use.
