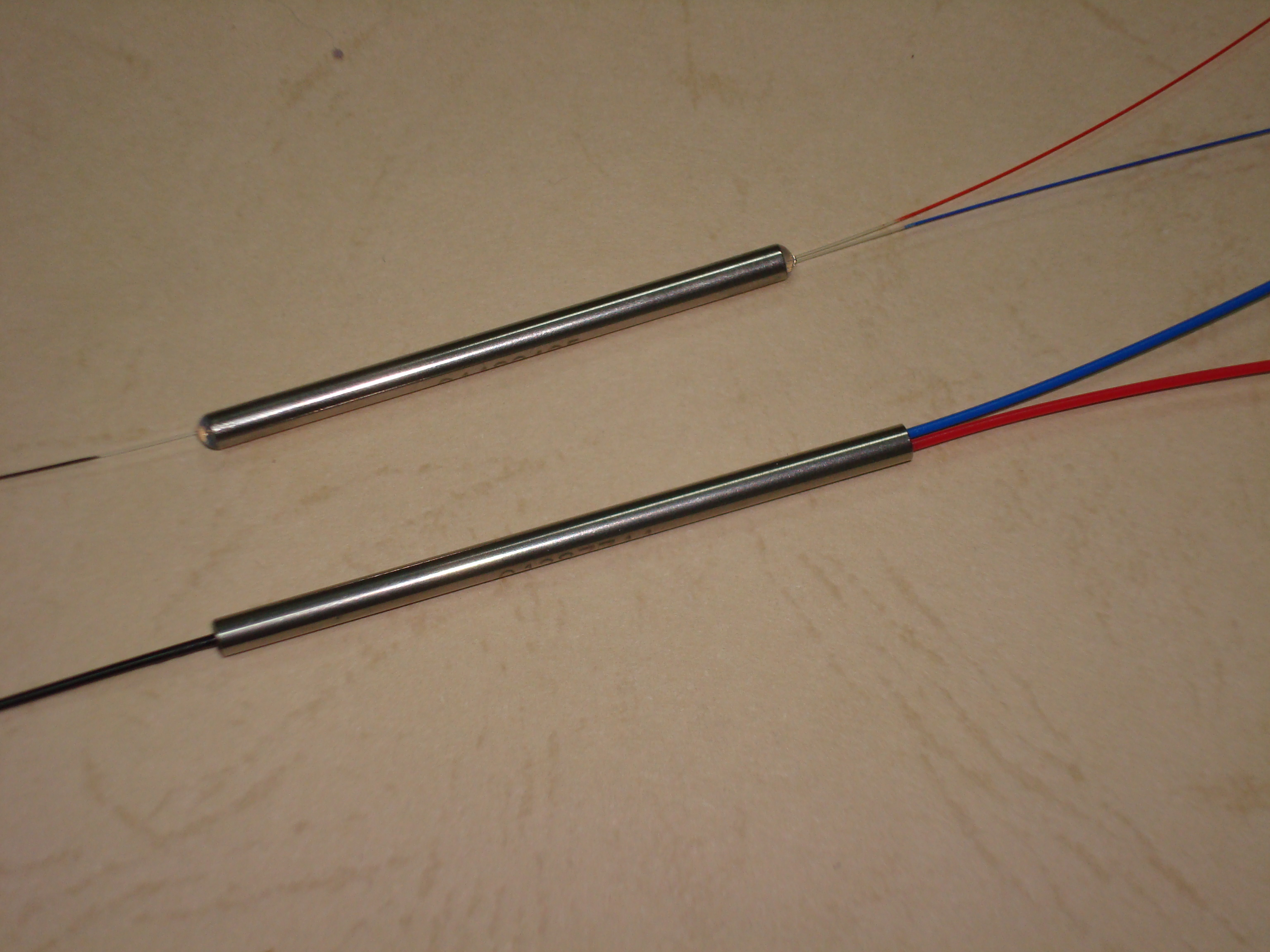

Hybrid Fiber SM 980nm WDMOE series

Grade

Parameter

A

WDMOE-980/1550

WDMOE-980/1590

Operating Wavelength (nm)

980 &1550

980&1590

Bandwidth (nm)

±15 @980nm
±20 @ 1550nm

±15 @980nm
±20 @ 1550nm

Max Insertion Loss (dB)

0.15

0.15

Min Isolation(dB)

20

20

Polarization Dependent Loss(dB)

≤ 0.1

≤ 0.1

Thermal Stability (dB/℃)

≤ 0.002

Return Loss(dB)

≥ 60

Directivity (dB)

≥ 60

Lead length (m)

1meter,others on request

Fiber Type

Com port and Pump980 port：

OFS980 or Hi1060 or Hi1060 Flex;

Signal1550 port： SMF-28e
