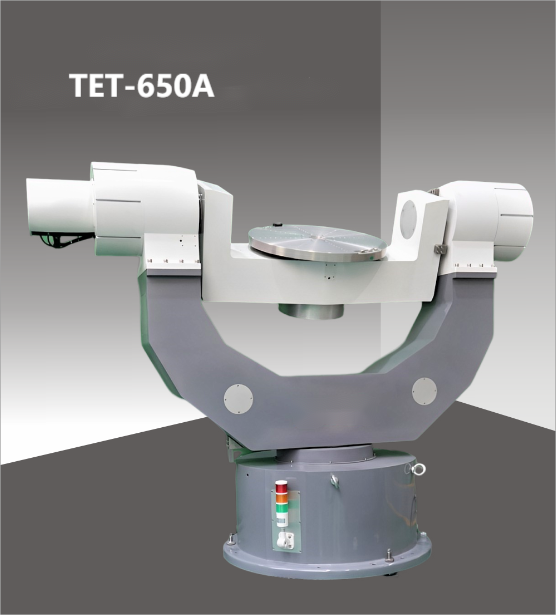

Improved Three Axis Test Table TET-650A

Technical indexes

1. Azimuth rotation speed≤20°/s
2. 360°continuous azimuthal motion range
3. Azimuth acceleration≥20°/s²
4. Maximum pitching speed: ≤20°/s²
5. Pitching motion range -90°~+90°  (Horizontal direction is 0°)
6. Pitch acceleration: ≤20°/s²
7. Transverse roll speed ≥±10r/s
8. Transverse roll motion range 0r/s--10r/s
9. 360°continuous range of traverse roll motion
10. Rolling acceleration ≥ 60 ° / s²
11. Three-axis orthogonality ≤ 0.2 °
12. Maximum load capacity ≥ 20Kg
13. Code disk resolution ≤0.02°.
14. Position accuracy ≤±0.1°.
15. Maximum workpiece size ≤φ600×450
16. The height of the center of the rotary table tilting axis 2000mm (including the height of the bottom car);  The height of the horizontal rolling axis table 1900mm (including the height of the bottom car)
17. Field of view angle ≤15°
