Product Introduction

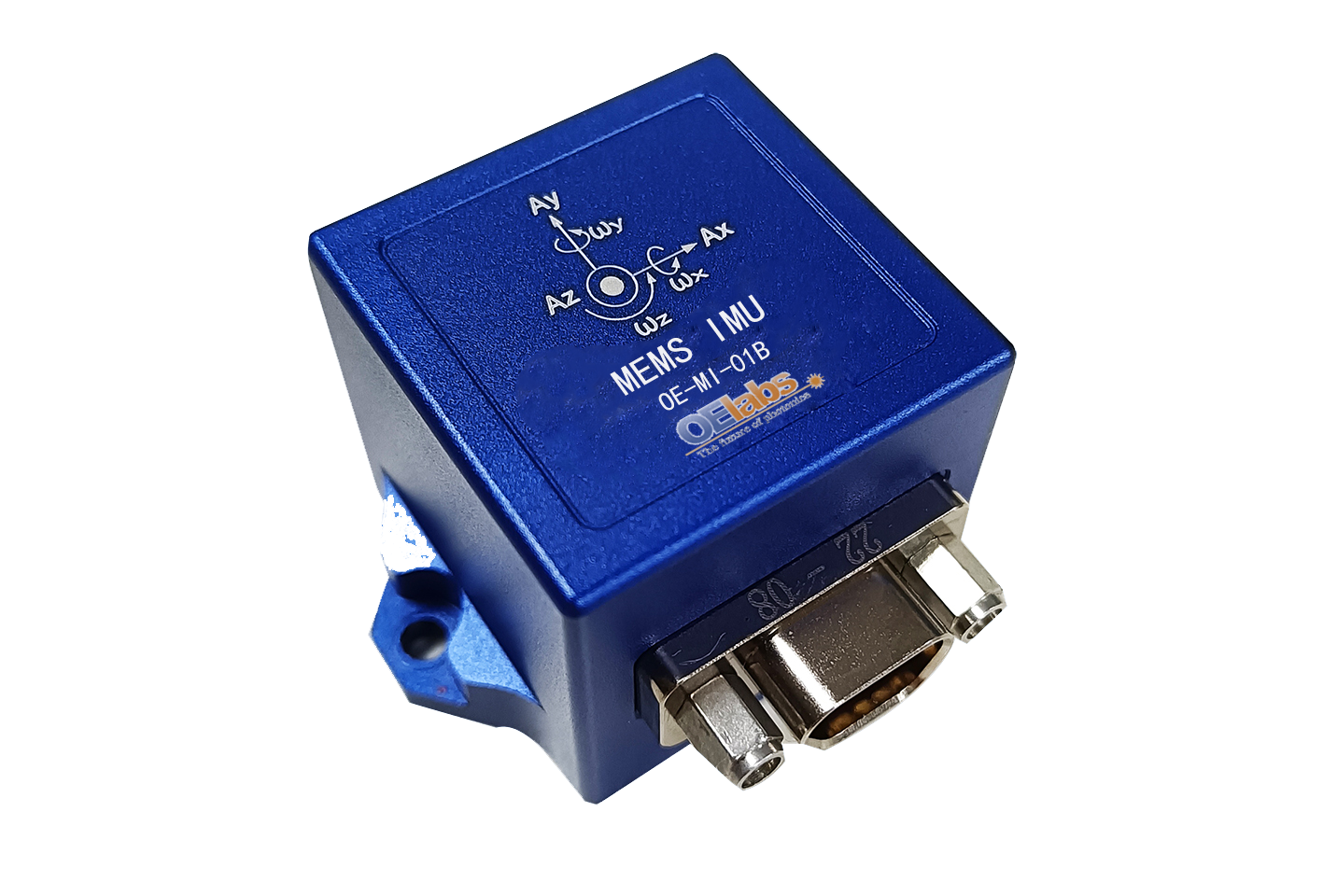

The OE-MI-01B Inertial Measurement Unit is a high-performance, low-cost inertial measurement device for navigation, control and dynamic measurements. The sealed design of this series of products allows precise measurement of angular velocity and acceleration information of moving carriers even in harsh environments. The OE-MI-01B utilizes highly reliable and stable MEMS sensors to ensure measurement accuracy.
Product Functions and Uses
OE-MI-01B adopts three single-axis high-precision MEMS gyroscopes and three single-axis high-precision MEMS accelerometers, and outputs carrier motion information through signal conditioning, A/D conversion, digital filtering, and compensation for temperature and installation errors.
It can be used for navigation and guidance control, platform stabilization and control, general aviation, combination with GPS, dynamic measurement of ship attitude, mining and automatic farming, train and container tracking.
Environmental Conditions For Use Of The Product
(1) Low air pressure
Working condition: it can work normally under 65~102kPa atmospheric pressure;
Withstand conditions: the same working conditions.
(2) High temperature
Working conditions: 70 ℃ can work normally;
Withstand conditions: 85 ℃.
(3) Low temperature
Working conditions: -40 ℃ can work normally;
Withstand conditions: -45 ℃.
(4) Damp heat
Working conditions: at a temperature of 60 ℃, humidity 95% of the environment can work normally;
Withstand conditions: the same working conditions.
(5) Mold
Working conditions: the ability to prevent mold;
Withstand conditions: the same working conditions.
(6) Vibration: 20Hz - 2000 Hz, 6g.
(7) Shock: 30g (11ms, half-sine).
