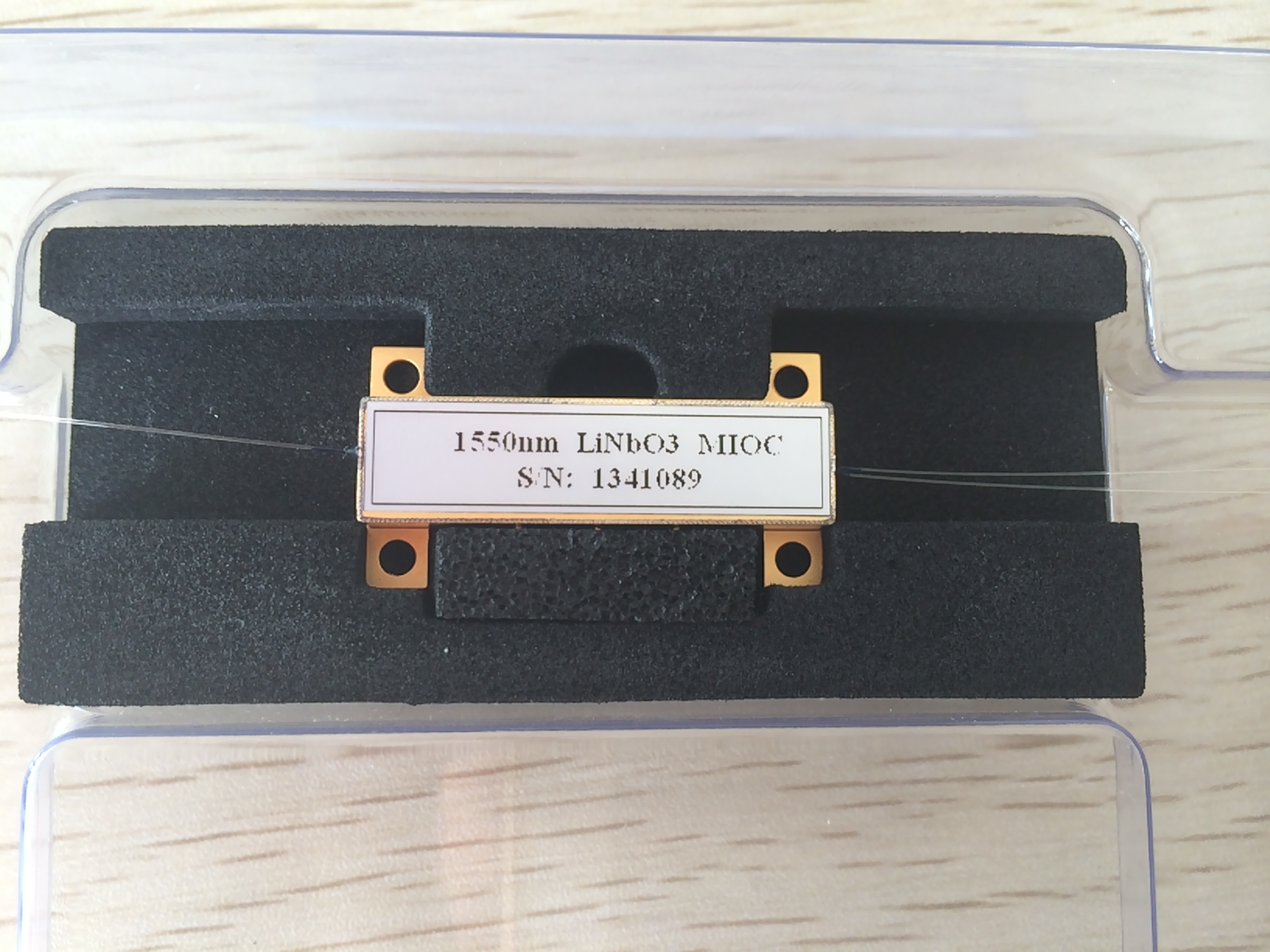

Integrated Optic Chip for Gyroscope

      It is for attitude control of movements such as aircrafts, ships, guided missiles, automobiles etc in the fiber gyroscope system, Hydrophone and other optic sensitive fields. Faraday Effect was used to measure current through fiber circuit in the current sensing system.

• X-Cut, y-propagating LiNbO₃
• Very low insertion loss.
• APE process for waveguide, works in single polarization
• High extinction ratio
• Fiber is sloping coupled with waveguide, which deduce optical return far and away
• Push-pull electrode design may deduce half wave Voltage
• Small packaging and lightweight
• Excellent long-term stability
