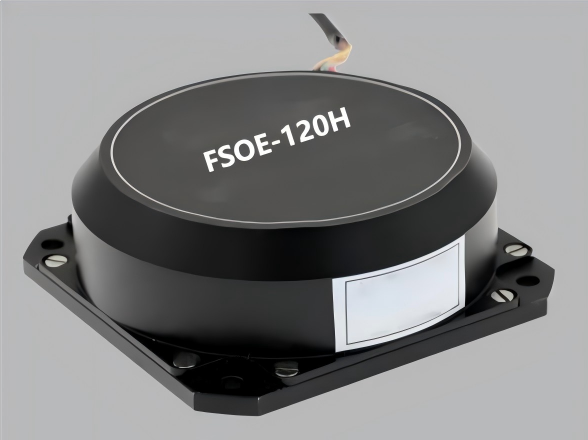

Medium-High Precision FOG FSOE-120H

Introduction

         FSOE-120H is an inertial angular rate sensor based on the optical Sagnac effect, which is used to measure the angular rate of the carrier along the sensitive axis ofthe product. The angular rate sensing unit ofthis product is an optical fiber coil, and a digital closed-loop detection circuit is used to extract the optical path difference of the optical fiber coil sensitive to the clockwise and counterclockwise propagation light caused by the external physical angular velocity, and at the same time, the optical path difference signal is converted into a voltage signal. Closed-loop feedback and control realize signal modulation and demodulation, and achieve the purpose of high-precision angular velocity signal detection.

Exceptional Technology

       By reducing the outer diameter of fiber to 135um, Thin PM fiber solution decreases extremely the size offiber coils and delivers outstanding precision performance in fiber coils, which is applied for miniaturization of FOGs. And, the coils are wound precisely through quadrupole symmetry method
