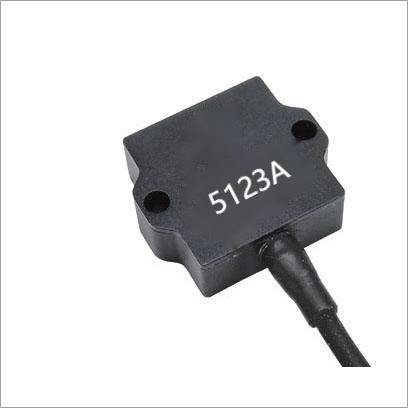

MEMS Capacitive Accelerometer VCOE-5123A

Main product features:

1.MEMS accelerometer.

2.Zero frequency DC response output.

3.Multiple ranges selectable.

4.High precision.

5.Low frequency low g value measurement

Main application areas:  High speed rail,  Inclination measurement

Main technical indicators:

1. Range (±g): 2, 5, 10, 50, 200, 500
2. Sensitivity (mV/g): 1000, 400, 200, 40, 10, 4
3. Frequency Response (Hz, ±5%): 0-1500
4. Shock Limit (±g): 5000
5. Operating Temperature Range (℃): -40-85
6. Weight (g): 6
7. Dimension (mm): 26×22×8
8. Shell material: anodized aluminum
9. Output interface: integrated cable
