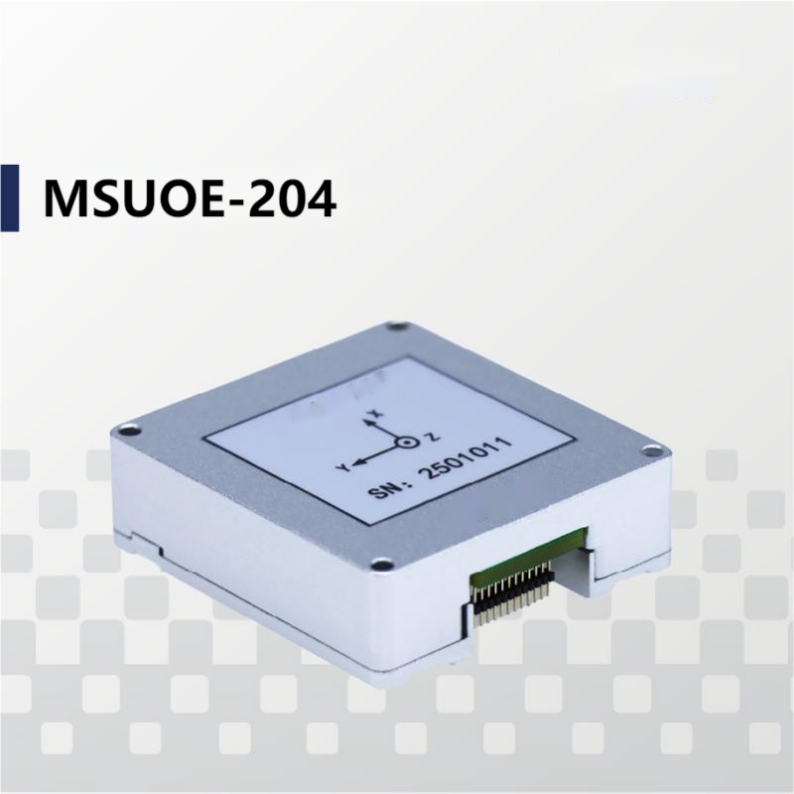

MEMS Inertial Sense Imu Micro Inertial Measurement Unit Autonomous High Overload Resistance MSUOE-204

Introduction

Technical Characteristics

High performance in very small size

        MSUOE-204 is a High-performance MEMS inertial measurement unit with small volume and high overload resistance. LKF16488Ahas a built-in tri-axis gyro and tri-axis accelerometer for measuring the tri-axis angular rate and tri-axis acceleration of the carrier.It also has a built-in triaxial magnetometer and pressure sensor The gyro and accelerometer data with error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation, etc.) are output through the serial port according to the agreed communication protocol.

High quality and reliability

       MSUOE-204 adopts high-precision MEMS inertial devices from original big brand, has high reliability and stability, and can accurately measure the angular velocity and acceleration information of a moving carrier in harsh environments. It can be used for precise navigation, control and dynamic measurement of weapons.

Autonomous Sensor System

         MSUOE-204 is an autonomous sensor system. When there is an effective power supply, it will start automatically.  After completing the initialization process, it starts sampling, processing and loading the calibrated sensor data into the output register, which can be accessed through the SPI port.  SPI port is usually connected to compatible port of embedded processor.
