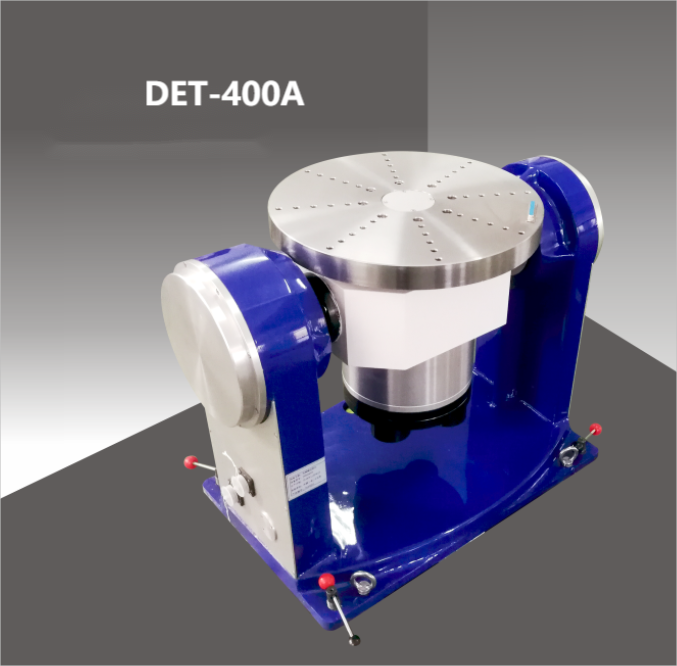

Miniature Dual-Axis Electric Turntable DET-400A

No.DET-400A

           DET-400A small two-axis motorized rotary table has two operation modes: local control and remote control, local control in the measurement and control cabinet LCD touch screen operation, remote control by the user's computer through the network interface or serial port operation. Rotary table with overspeed protection, overcurrent protection and emergency power failure protection. When the turntable measurement and control cabinet or control computer abnormal power failure, the table body can stop in the current position, does not produce violent shaking.

  • Miniature Dual-Axis Electric Turntable DET-400A
  • Description

  • Contact Us

  • Download

Technical specification

  1. Rated load: 20Kg
  2. Table size: Ф400mm
  3. Flatness of table surface: 0.02mm;
  4. Table surface runout: 0.02mm;
  5. Dual-axis rotary accuracy: ±3”;
  6. Dual-axis positional accuracy: outer frame: ±3″, inner frame: ±3″
  7. Perpendicularity of inner and outer ring axes: ±5″
  8. Rate resolution: better than 0.001°/s
  9. Rate accuracy and smoothness
ω≤1°/s , 2×10-3 (1° averaging method);
1°/s ≤ ω<10°/s , 2×10-4 (10° averaging method);
ω ≥10°/s , 2×10-5 (360° averaging).
    10. Rate range
Inner frame: ±0.001°/s ~ ±200°/s;
Outer frame: ±0.001°/s~±100°/s.
   11. Acceleration
Outer frame: greater than 50°/s²;
Inner frame: greater than 100°/s².
   12. Table weight: ≤200Kg
