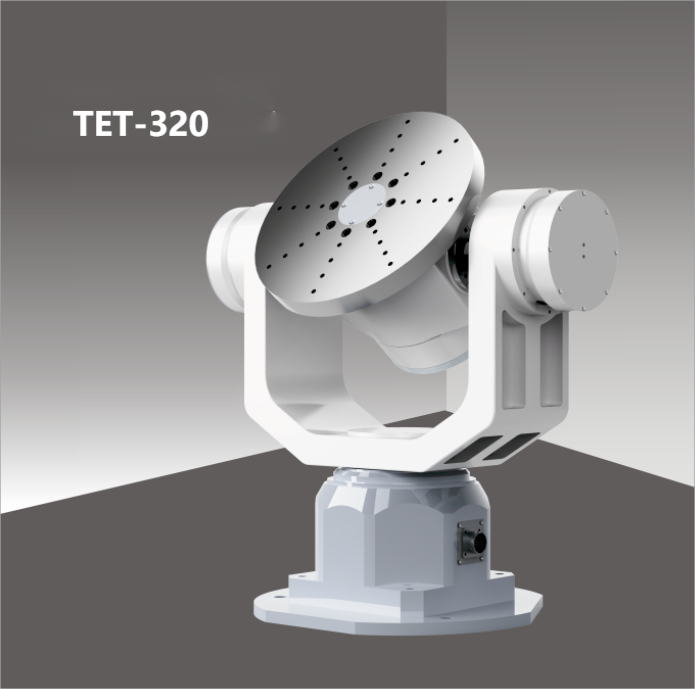

Miniature Flat-top Three-axis Electric Turntable TET-320

No.TET-320

TET-320 3-axis navigation anti-jamming test rotary table is a high-precision, multi-functional 3-axis test equipment, which has the functions of position, rate, etc. It can be used for the simulation test of the attitude motion, and also for the test and calibration of inertial combinations and devices.

GET A QUOTE

Technical indexes

Rated load: 15Kg
Table size: Ф320mm
Table flatness: 0.02mm;
Table surface runout: 0.02mm;
Three-axis rotary accuracy: ±5”;
Three-axis verticality: ±15”;
Three-axis intersection degree: Ф0.5mm diameter ball;
Positional accuracy of three axes: outer frame: ±5″; center frame: ±5″ inner frame: ±5″.
External dimensions: 568 × 568 × 559 mm
Table weight: 90Kg
Rate accuracy and smoothness

ω≤1°/s , 2×10-3 (1° average method);

1°/s≤ω<10°/s , 2×10-4 (10°average method);

ω ≥10°/s , 2×10-5 (360° averaging).

Inner frame: ±0.001°/s～±300°/s;

Middle frame: ±0.001°/s～±200°/s;

Outer frame: ±0.001°/s～±200°/s.

13.Acceleration

Outer frame: greater than 100°/s²;

Center frame: greater than 100°/s².

Inner frame: greater than 200°/s²
