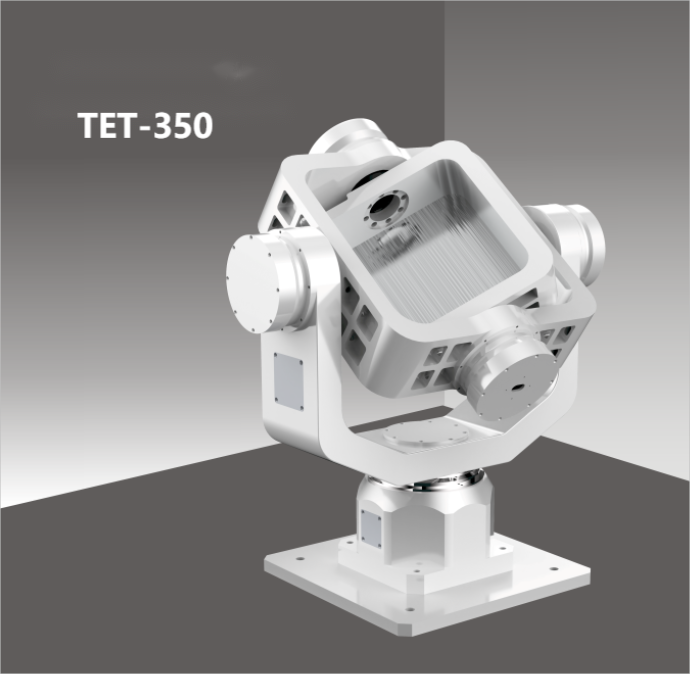

Miniature Frame-Type Three-Axis Electric turntable TET-350

No.TET-350

Three-axis motorized rotary table for fiber optic gyro, MEMS gyro and IMU research and testing, production debugging and maintenance of calibration and the development of special precision equipment, mainly for the rate and position function test, with stable performance, reliable operation, easy to operate, easy to carry, low acquisition cost and so on. The equipment can also be used for the test of other inertial components and devices.

GET A QUOTE

Description
Contact Us
Download

Technical specification

Rated load: 15Kg
Load size: 255x255x150mm
Flatness of table surface: 0.02mm;
Table surface runout: 0.02mm;
Three-axis rotary accuracy: ±5”;
Three-axis verticality: ±15”;
Three-axis position resolution: ≤0.36″;
Three-axis positional accuracy: ±15″.
External dimension: 654×654×600
Table weight: 90Kg
Rate accuracy and smoothness

ω≤1°/s , 2×10^-3(1° average method);

1°/s≤ω<10°/s , 2×10^-4 (10°average method);

ω ≥10°/s , 2×10^-5 (360° averaging).

Rate range

Inner frame: ±0.001°/s～±300°/s;

Middle frame: ±0.001°/s～±200°/s;

Outer frame: ±0.001°/s～±200°/s.

13.Acceleration

Outer frame: greater than 100°/s²;

Center frame: greater than 100°/s².

Inner frame: greater than 200°/s²
