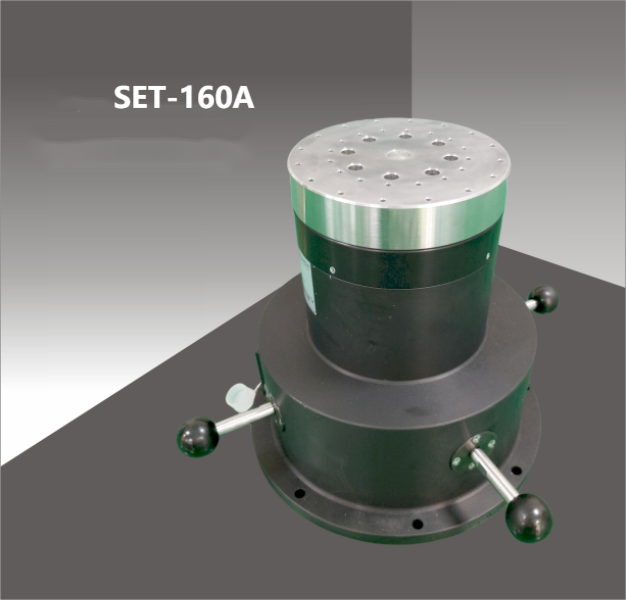

Miniature Single-Axis Electric Turntable SET-160A

No.SET-160A

            SET-160A small single-axis electric rotary table is mainly used for rotary transformer indexing error testing, testing and production debugging and maintenance calibration; for angular position and rate function test, with stable performance, reliable operation, simple operation and so on. The equipment can also be used for the test of other inertial components and devices.

  • Miniature Single-Axis Electric Turntable SET-160A
  • Description

  • Contact Us

  • Download

Technical specification

  1. Rated load: 30Kg
  2. Table size: Ф160mm
  3. Table flatness: 0.01mm;
  4. Table surface runout: 0.01mm;
  5. Rotary accuracy: ±2”;
  6. Position accuracy: ±2″.
  7. Repeatability: ±1″
  8. Resolution:±0.36″
  9. Rate accuracy and smoothness
ω≤1°/s , 2×10-3 (1° averaging)
1°/s ≤ω<10°/s , 2×10-4 (10° averaging method);
ω ≥10°/s , 2×10-5 (360° averaging method).
  1. Rate range: ±0.001°/s ~ ±300°/s;
  2. Acceleration: ≥50°/s²
