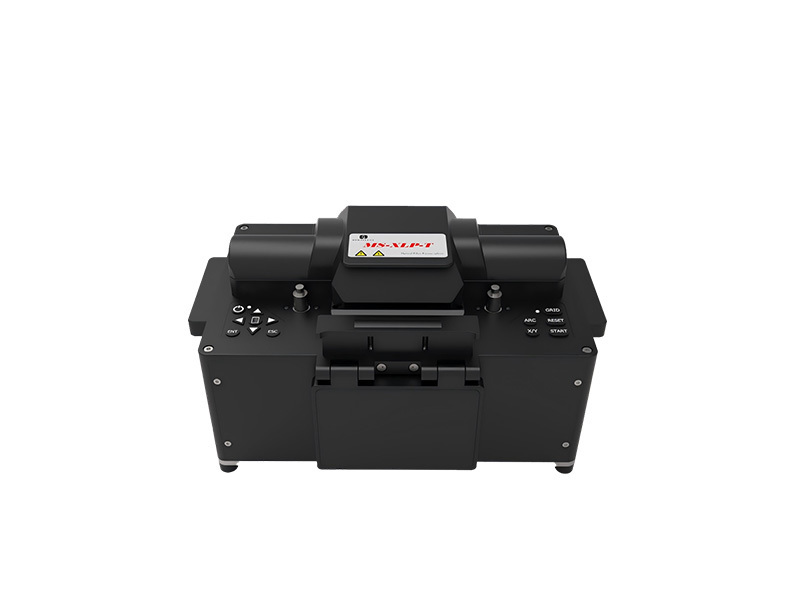

MSOE-XLP-T Portable PM Optical Fiber Fusion Splicer

Model name

MSOE-XLP-T

Optical fiber material

Quartz optical fiber

Optical Fiber cladding diameter

Φ60-125μm

Optical fiber coating diameter

Φ100-250μm

Optical fiber quantity

Fusion single optical fiber

Cleaving length

3~10mm (Typical value 8 mm)

Typical fusion splicing loss

SMF/PMF

0.05dB

MMF

0.02dB

Typical fusion splicing time

PMF(PANDA)

45 seconds

SMF/MMF

30 seconds

Typical polarization extinction ratio

40dB

Electrode life

2,500 Arc Discharges

(typical value,correspond G652 optical fiber fusion splicing)

Tension test

1.96-2.45N

Amplified factor

100-500 (variable)

Automatically fusion splicing

Supply

Fusion splicing mode

Automatic、manual

Num.of splicing data storage

10,000 for splicing data

Dimensions

336(L)*218.5(W)*181(H)mm

Power supply

AC adapter:DC13.5V/10A

Operating condition

Humidity 0~95%;Temperature 0~40℃ (non dew)

Storage condition

Humidity 0~95%;Temperature -40~80℃ (non dew)
