Product Introduction

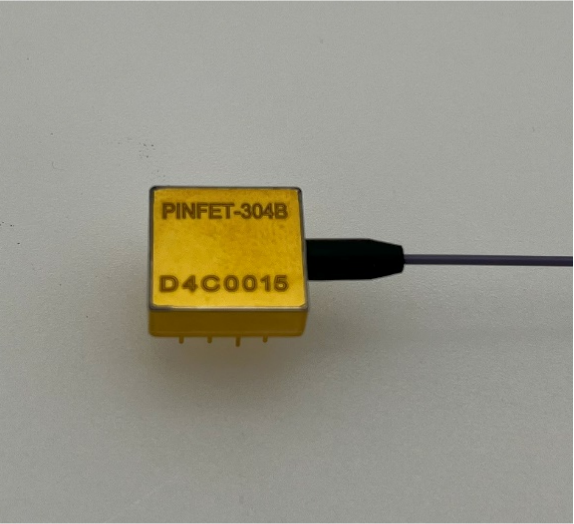

The PIN-FET (P-Intrinsic-N Field-Effect Transistor) is the optical signal receiving part of fiber optic gyros, and performs function of photo-electric conversion and signal amplification. It is crucial for ensuring high sensitivity, low noise, and long life of FOGs. Standard 14-pin, 8-pin or 6-pin structure is used for compacted hermetic package.
Product Features
Product Specifications
|
Parameter |
PIN-FET for high power incident |
PIN-FET for Low power incident |
||||||
|
Wavelength Band |
1290 ~ 1560nm |
|||||||
|
Linear Responsibility(V/μW) |
0.009 |
0.045 |
0.09 |
0.18 |
0.18 |
0.36 |
0.72 |
1.08 |
|
Linear Maximum Optical Power(μW) |
320 |
64 |
32 |
16 |
16 |
8 |
4 |
2 |
|
Linear Minimum Optical Power(μW) |
2 |
0.4 |
0.2 |
0.1 |
0.1 |
0.05 |
0.03 |
0.02 |
|
Linearity(%) |
±3 |
|||||||
|
Trans-Impedance(KΩ) |
10 |
50 |
100 |
200 |
200 |
400 |
800 |
1200 |
|
3dB Bandwidth(MHz) |
4~10 / >10 |
4~10 |
||||||
|
Root-Mean-Square (RMS) Voltage(V) |
≤0.5 |
|||||||
|
Package(mm) |
6pin:10.66×7.4×4.5(type G） / 8pin:13.5×12.6×4.67(type S) 13.2*7.4*4.95(type F)/ 14pin:20.8×12.7×4.57（Type D) |
|||||||
|
Tail Fiber |
SM, Ø125μm or Ø80μm, L=1m |
|||||||
|
Working Temperature(℃) |
-45~+70 |
|||||||
|
Storage Temperature(℃) |
-55~+85 |
|||||||
