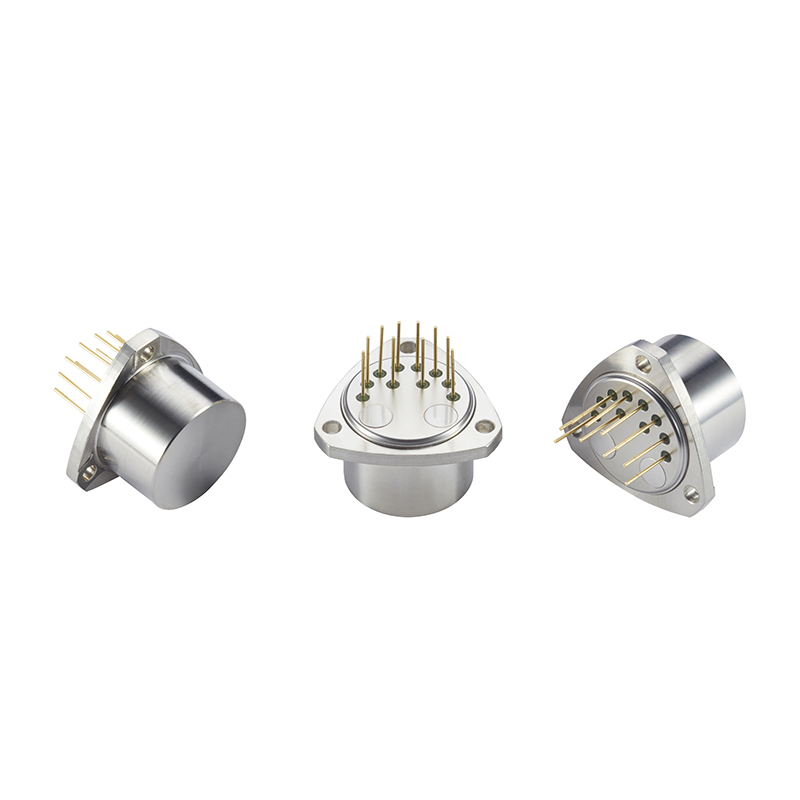

KTOE-JB5 series quartz flexure accelerometer is a medium accuracy accelerometer designed with unique structural dimensions (short). The product has excellent long-term stability, repeatability, dynamic response performance, good anti-vibration shock performance and high reliability, etc. It can be used for both static and dynamic testing, and is also a standard vibration sensor and inclination sensor. The product adopts a unique structural design and special circuit, the output current and the force or acceleration are linearly related, the user can select the appropriate sampling resistance through the calculation to achieve high-precision output. And according to the user's needs built-in temperature sensor, for the bias value and scale factor compensation, to reduce the impact of the ambient temperature.
Applications: Inclination testing of bridges, dams, oil wells, coal mines, etc., high-speed railroad control, and stability control of ships.
|
No. |
Parameter |
KTOE-JB5-01 |
KTOE-JB5-02 |
KTOE-JB5-03 |
|
1 |
Output range |
±50g |
±50g |
±50g |
|
2 |
Resolution |
＜5µg |
＜5µg |
＜5µg |
|
3 |
Bias K0/K1 |
＜5mg |
＜7mg |
＜10mg |
|
4 |
Scale factor K1 |
1.1～1.3 mA/g |
1.1～1.3 mA/g |
1.1～1.3 mA/g |
|
5 |
Second-order nonlinearity factor K2 |
≤±20μg /g2 |
≤±20μg /g2 |
≤±20μg /g2 |
|
6 |
Integrated repeatability of bias σk0 (1σ, 1 month) |
＜15µg |
＜30µg |
＜50µg |
|
7 |
Scale factor integrated repeatability σk1/k1 (1σ, January) |
＜30 ppm |
＜50 ppm |
＜80 ppm |
|
8 |
Nonlinear factor integrated repeatability k2/k1 (1σ, 1 month) |
≤±20 μg /g2 |
≤±20 μg /g2 |
≤±20 μg /g2 |
|
9 |
Bias temperature coefficient (full temperature average) |
＜20µg/℃ |
＜30µg/℃ |
＜40µg/℃ |
|
10 |
Scaled temperature coefficient (full temperature rms) |
＜40ppm |
＜50ppm |
＜80ppm |
|
11 |
Noise (sampling resistance of 840Ω) |
≤5mv |
≤5mv |
≤5mv |
|
12 |
Bandwidth |
＞300 Hz |
＞300 Hz |
＞300 Hz |
|
13 |
Vibration Rectification Error |
＜30µg/g2rms (50-500Hz) |
＜30µg/g2rms (50-500Hz) |
＜30µg/g2rms (50-500Hz) |
|
14 |
Random vibration |
20g@20-2000Hz |
20g@20-2000Hz |
20g@20-2000Hz |
|
15 |
Shock |
250g 4.5ms |
250g 4.5ms |
250g 4.5ms |
|
16 |
Mounting Error |
＜1500µrad |
＜1500µrad |
＜1500µrad |
|
17 |
Operating Temperature Range |
-55～96℃ |
-55～96℃ |
-55～96℃ |
|
18 |
Input Voltage |
±13 ~±18V |
±13 ~±18V |
±13 ~±18V |
|
19 |
Current Consumption |
＜20 mA |
＜20 mA |
＜20 mA |
|
20 |
Temperature Sensor |
Customizable |
Customizable |
Customizable |
|
21 |
Weight |
＜55g |
＜55g |
＜55g |
|
22 |
Mounting diameter |
Ф25mm |
Ф25.3mm |
Ф25mm |
|
23 |
Housing material |
300 Series Stainless Steel |
300 Series Stainless Steel |
300 Series Stainless Steel |
