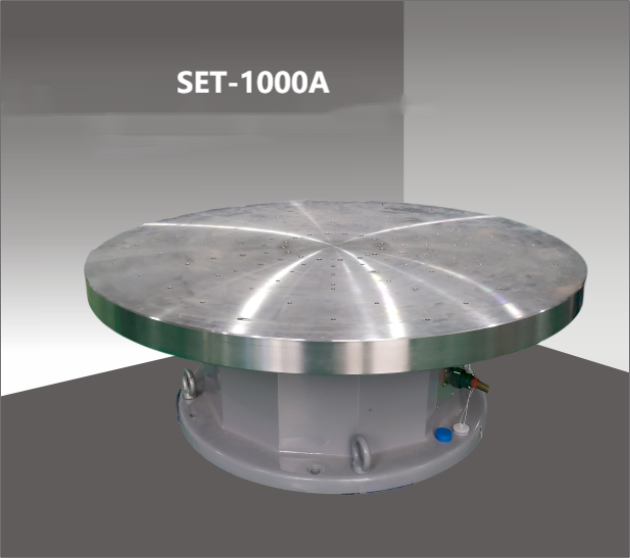

Single-axis Electric Speed Position Turntable SET-1000A

No.SET-1000A

          SET-1000A single-axis position rotary table is a single-axis table type mechanical axis system structure. It is mainly used for the testing of gyro, accelerometer and other inertial components, and is equipped with various functions such as position, rate, etc. It can automatically carry out the rotary table control and data acquisition.

  • Single-axis Electric Speed Position Turntable SET-1000A
  • Description

  • Contact Us

  • Download

Technical specification

  1. Rated load: 300Kg
  2. Table size: Ф1000mm
  3. Table flatness: 0.05mm;
  4. Table surface runout: 0.05mm;
  5. Rotary accuracy: ±3”;
  6. Position accuracy: ±3″.
  7. Turning angle range: ±360°/s
  8. Rate accuracy and smoothness
ω≤1°/s , 2×10-3 (1° averaging)
1°/s ≤ω<10°/s , 2×10-4 (10° averaging)
ω ≥10°/s , 2×10-5 (360° averaging method).
  1. Rate range: ±0.001°/s~±20°/s;
  2. Acceleration: ≥20°/s²
