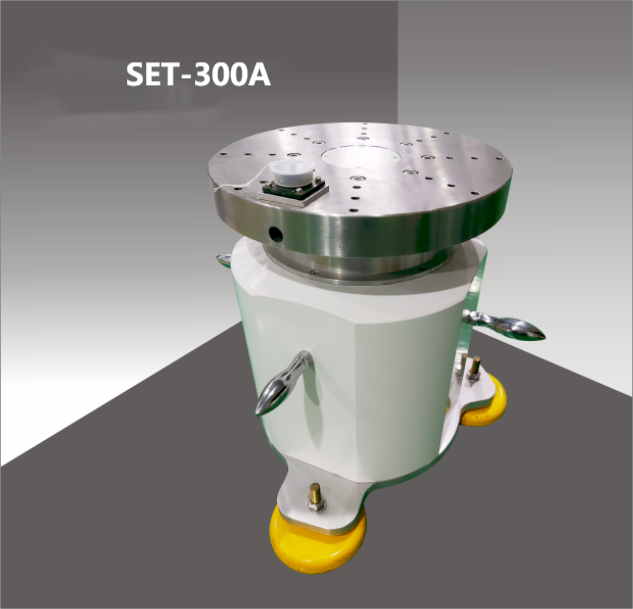

Single-axis Electric Speed Position Turntable SET-300A

No.SET-300A

            Single-axis motorized rate-position rotary table is a special precision equipment developed for the research and test, production debugging and maintenance calibration of fiber optic gyro and IMU, mainly used for rate and position function test, with stable performance, reliable operation, simple operation, easy to carry, low acquisition cost and so on. The equipment can also be used for the test of other inertial components and devices.

  • Single-axis Electric Speed Position Turntable SET-300A
  • Description

  • Contact Us

  • Download

Technical specification

  1. Rated load: 30Kg
  2. Table size: Ф300mm
  3. Table flatness: 0.02mm;
  4. Table surface runout: 0.02mm;
  5. Rotary accuracy: ±3”;
  6. Position accuracy: ±3″.
  7. Rate resolution: better than 0.001°/s
  8. Rate accuracy and smoothness
ω≤1°/s , 2×10-3 (1° averaging)
1°/s ≤ ω<10°/s , 2×10-4 (10° averaging method);
ω ≥10°/s , 2×10-5 (360° averaging method).
  1. Rate range: ±0.001°/s ~ ±1000°/s;
  2. Acceleration: more than 400°/s².
