Temperature characterization test can be carried out on MEMS gyro to obtain the modal resonant frequency and quality factor of MEMS gyro with temperature change relationship curve, so as to give the segmented temperature compensation method. Zero bias measurement during startup; zero bias measurement at different temperatures; measurement of MEMS gyro error caused by temperature change; zero measurement at different temperatures after taking temperature compensation measures; comprehensive test and evaluation report can be provided.
Technical indexes

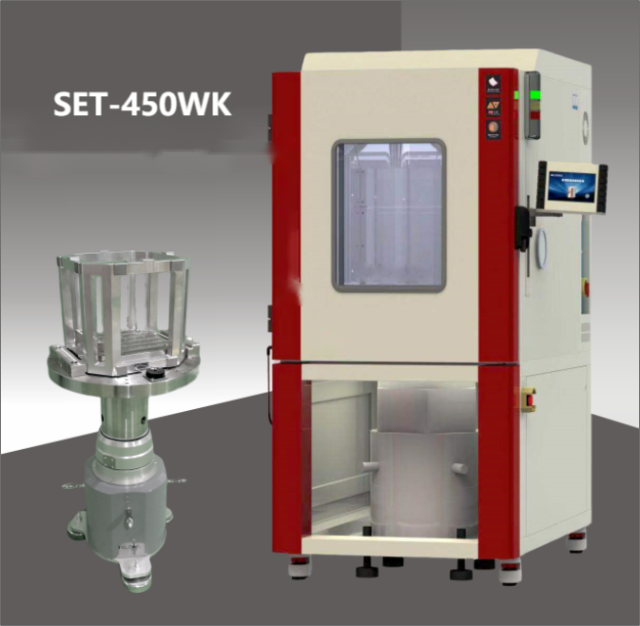

Partial index of rotary table
|
Project Name |
Indicator content |
Unit |
|
Carrying capacity: |
30 |
Kg |
|
Table Diameter |
450 |
mm |
|
Turning Angle Range |
Continuous Infinity |
|
|
Tilting Angle Slewing Error |
±2 |
″ |
|
Angular position positioning accuracy |
±3 |
″ |
|
Angular position resolution |
0.0001 |
° |
|
Angular position repeatability |
±1 |
″ |
|
Minimum angular rate |
±0.001 |
°/s |
|
Maximum angular rate |
±1000 |
°/s |
|
Rate accuracy and smoothness
|
5×10-3 |
1°average |
|
5×10-4 |
10°average |
|
|
5×10-5 |
360°average |
|
|
Angular Rate Resolution |
0.001 |
°/s |
|
Maximum angular acceleration |
500 |
°/s2 |
|
Specimen mounting surface flatness |
0.02 |
mm |
|
Specimen mounting surface runout |
0.03 |
mm |
|
Conductive Slip Rings |
50ring，3A |
|
|
Rotary table leakage |
<1 |
Gaussian |
Temperature box index
Temperature range: -55℃～+85℃;
Temperature change rate: not less than 2℃/min; with rated load, the temperature change rate is stepless adjustable;
Temperature control accuracy: ±1℃;
Temperature uniformity: ≤2℃;
Temperature fluctuation: less than ± 1 ℃;
Temperature box refrigeration mode, temperature change rate can be adjusted appropriately.
Interface requirements: reserved remote
