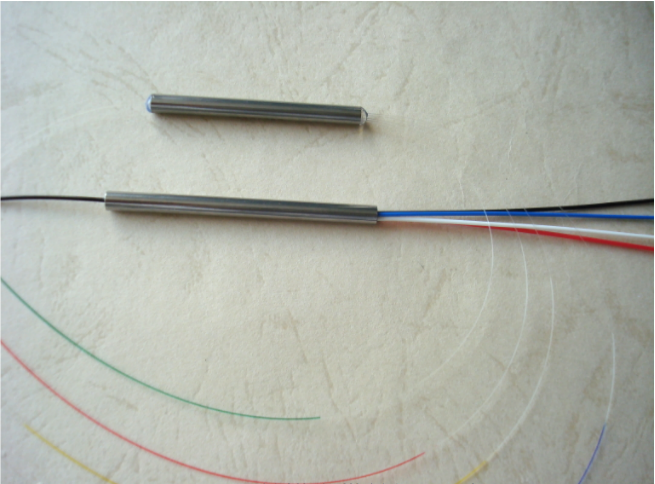

PACKAGE INFORMATION
| Configuration | 1×4 | |
| Lead Type | 0: U.V bare fiber | 1: 900um loose tube |
| Package Dimensions (mm) | φ4.0×35 or φ4.0×40 or φ4.0×45 | φ4.0×56 |
| Operating Temperature (℃) | -40 to +85 | -20 to +70 |
SPECIFICATIONS
|
Operating Wavelength(nm) |
1310 or 1550 |
1310 and 1550 |
||
|
Grade |
P |
A |
P |
A |
|
Bandwidth (nm) |
±40 |
|||
|
Configuration |
1×4 |
|||
|
Coupling Ratio (%) |
25/25/25/25 |
|||
|
Max. Insertion Loss (dB) |
6.6 |
7.0 |
7.0 |
7.2 |
|
Uniformity (dB) |
≤ 0.6 |
≤ 1.0 |
≤ 1.0 |
≤ 1.2 |
|
Wavelength Dependent Loss (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
|
Polarization Dependent Loss (dB) |
≤ 0.05 |
≤ 0.08 |
≤ 0.12 |
≤ 0.15 |
|
Thermal Stability( dB/℃) |
≤0.0025 |
|||
|
Directivity (dB) |
≥ 50 |
|||
|
Return Loss (dB) |
≥ 50 |
|||
|
Lead length (m) |
1 meter, others on request |
|||
