Synopsis

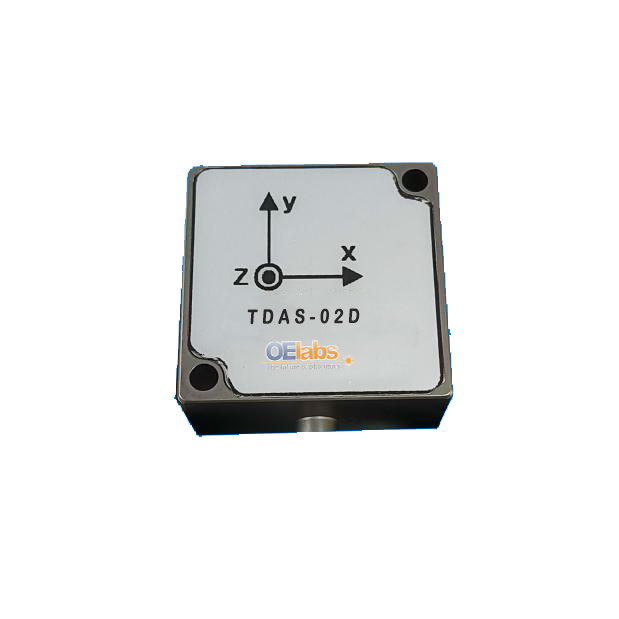

TDAS-01D/02D series triaxial solid-state accelerometers are sensors for measuring triaxial vibration acceleration. Each of the three-axis acceleration sensors adopts high-precision MEMS chip, which has high performance, low price, high reliability and high package robustness. It can be used in automotive measurement and control, inertial navigation, seismic monitoring, medical equipment, tilt, speed and position measurement, vibration and shock test bench acceleration measurement and other systems. The TDAS-01D/02D utilizes a highly reliable and stable MEMS sensor to ensure measurement accuracy.
1 Product Functions
The TDAS-01D/02D utilizes three single-axis high-precision MEMS accelerometers to output carrier vibration information through signal conditioning, A/D conversion, digital filtering, compensation for temperature and mounting errors and output carrier vibration information.
2 Environmental conditions for using the product
(1) Low air pressure
Working conditions: Normal operation under 65~102kPa atmospheric pressure;
Withstanding conditions: same as working conditions.
(2) High temperature
Working condition: 70℃ can work normally;
Withstand conditions: 85 ℃.。
(3) Low temperature
Working condition: -40℃ can work normally;
Withstanding conditions: -45℃.
(4) Damp heat
Working conditions: can work normally under the environment of 60℃ and 95% humidity;
Withstand conditions: the same working conditions.
(5) Mold
Working conditions: mold resistant;
Withstand conditions: the same working conditions.
(6)Vibration: 20 Hz - 2000 Hz, 6g.
(7)Shock: 10000g (0.5ms,half-sine).
3 Performance parameters
