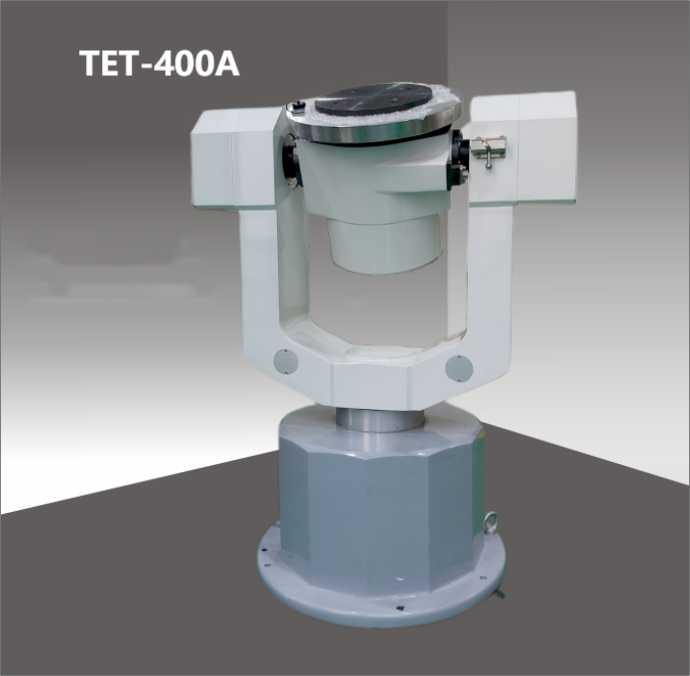

Three-Axis Electric Turntable TET-400A

No.TET-400A

TET-400A high-precision three-axis test rotary table is a high-precision, multi-functional three-axis test equipment, which has the functions of position, rate, etc. It can be used for the simulation test of the attitude motion, and also can be used for the inertial combinations and devices testing and calibration.

GET A QUOTE

Technical specification

Rated load: 30Kg
Table size: Ф450mm
Table flatness: 0.02mm;
Table surface runout: 0.02mm;
Three-axis rotary accuracy: ±5”;
Three-axis verticality: ±10”;
Three-axis intersection degree: Ф0.5mm diameter ball;
Three-axis positional accuracy:Outer frame: ±2″; center frame: ±2″; Inner frame: ±3″ .
Rate accuracy and smoothness

ω≤1°/s , 2×10^-3 (1° average method);

1°/s ≤ ω<10°/s , 2×10^-4 (10° averaging)

ω ≥10°/s , 2×10^-5 (360° averaging).

Inner frame: ±0.001°/s～±300°/s;

Middle frame: ±0.001°/s～±200°/s;

Outer frame: ±0.001°/s～±200°/s.

11.Acceleration

Outer frame: greater than 100°/s²;

Center frame: greater than 100°/s².

Inner frame: greater than 200°/s²
