PACKAGE INFORMATION
| Configuration | 1×2 or 2×2 | ||
| Lead Type | 0:250um bare fiber | 1:900um loose tube | 2:3mm loose cable (or 2mm) |

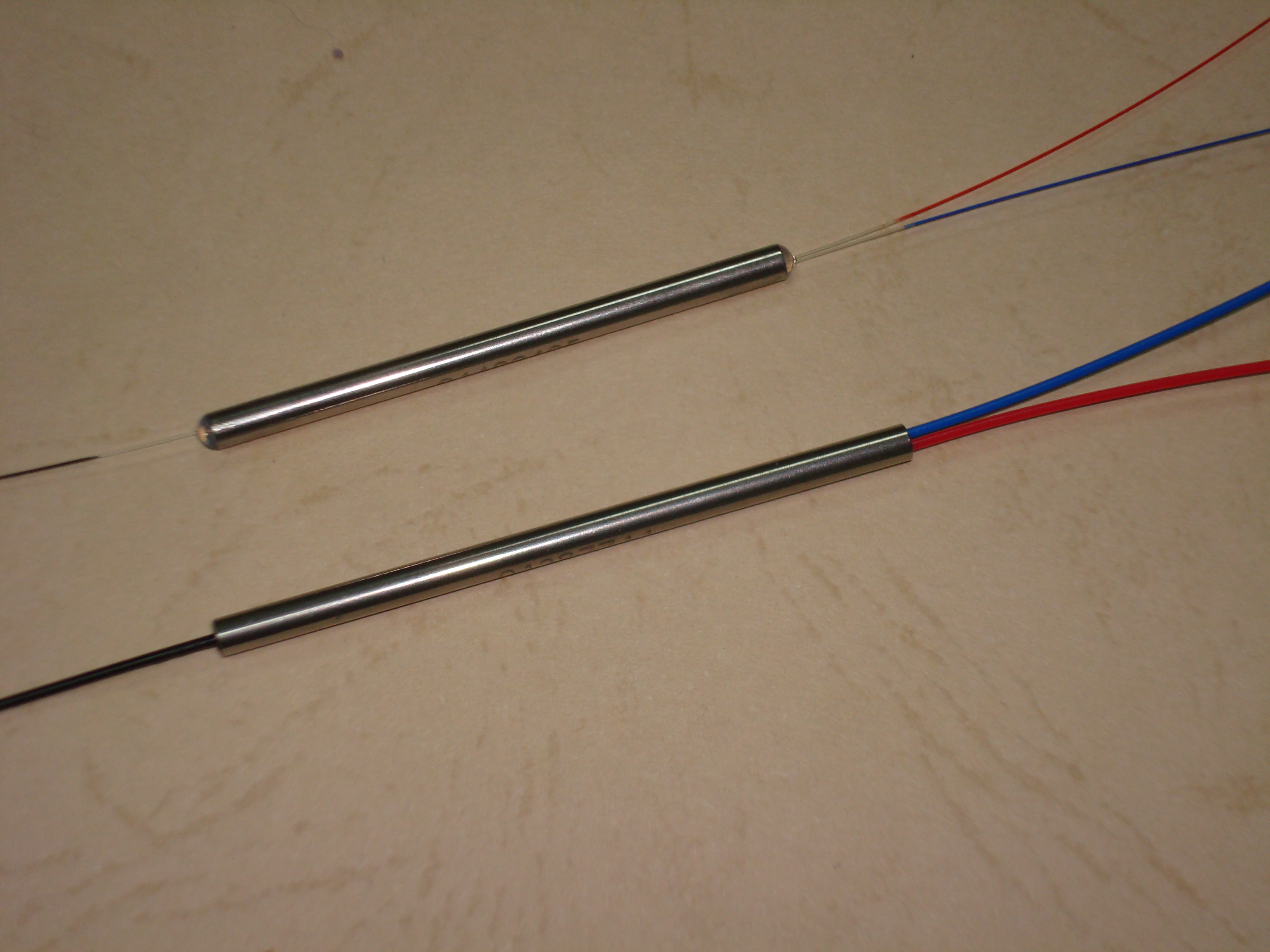

| Package Dimensions (mm) | A:Φ3.0×35 or Φ3.0×40 | A:Φ3.0×56 B:90×16×9 | B:90×16×9 C:106×79×10 |
| Operating Temperature (℃) | -40 to +85 | -20 to +70 | -20 to +70 |
SPECIFICATIONS
|
Operating Wavelength (nm) |
1310nm or 1550nm |
||||||||
|
Grade |
A |
||||||||
|
Bandwidth (nm) |
±40 |
||||||||
|
Excess Loss (dB) |
≤ 0.15 |
||||||||
|
Coupling Ratio (%) |
10/90 |
15/85 |
20/80 |
25/75 |
30/70 |
35/65 |
40/60 |
45/55 |
50/50 |
|
Max. Insertion Loss (dB) |
11.3/0.95 |
9.5/1.2 |
8.1/1.5 |
7.0/1.8 |
6.2/2.1 |
5.5/2.5 |
4.9/2.9 |
4.3/3.3 |
3.7 |
|
Wavelength Dependent Loss (dB) |
0.85/0.30 |
0.85/0.30 |
0.8/0.30 |
0.75/0.35 |
0.70/0.35 |
0.70/0.45 |
0.70/0.45 |
0.65/0.45 |
0.65 |
|
Polarization Dependent Loss (dB) |
0.20/0.10 |
0.20/0.10 |
0.20/0.10 |
0.20/0.10 |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
|
Thermal Stability (dB/℃) |
≤0.002 |
||||||||
|
Return Loss (dB) |
≥50 |
||||||||
|
Directivity (dB) |
1×2 |
≥50，≥60 on request |
|||||||
|
2×2 |
≥65 |
||||||||
|
Fiber Type |
G.657.A2 Ultra Optical Fiber |
||||||||
